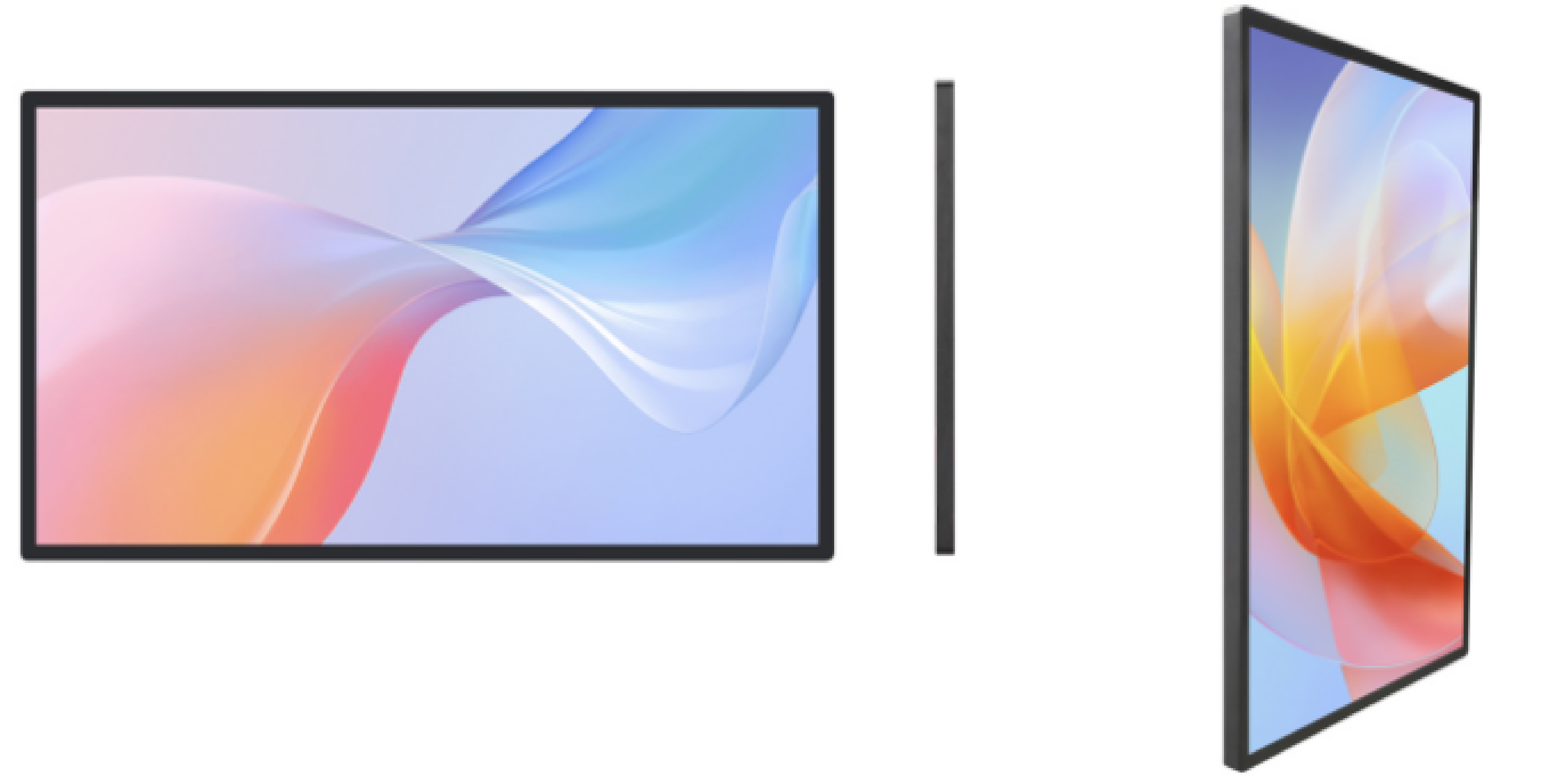

Product images
|
||
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
Android system(including information publishing system)
|
CPU
|
A133\RK3288\RK3566
|
|
|
RAM
|
2G/4G optional
|
|
|
Storage
|
16GB/32GB optional
|
|
|
HDMI interface
|
HDMI in*1
|
|
|
TF card interface
|
TF card*1,(supports maximum expansion of 64GB)
|
|
|
USB interface
|
USB*2 (USB Host*1,USB OTG*1)
|
|
|
network interface
|
RJ45 Ethernet cable interface*1,WiFi 2.4G
|
|
|
headphone jack
|
3.5mm stereo headphone output*1
|
|
display
|
LCD screen
|
55"LCD
|
|
|
Resolution
|
3840*2160
|
|
|
Active area
|
1208.6×720.4(mm)
|
|
|
viewing angle
|
178/178/178/178(L/R/U/D)
|
|
|
display mode
|
normally black, IPS
|
|
|
contrast ratio
|
1200：1
|
|
|
brightness
|
≧450-700nits
|
|
|
Color gamut
|
≧90%
|
|
|
Screen ratio
|
16:09
|
|
Network
|
WiFi
|
Supports WIFI-2.4G(expandable BT-4.0)
|
|
|
Ethernet
|
10M/100M Ethernet port
|
|
|
BT
|
Bluetooth4.0 \5.0
|
|
Media playback
|
Video format
|
Support RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4,etc
|
|
|
Audio format
|
MP3/WMA/AAC etc.
|
|
|
Image format
|
Supports BMP,JPEG,PNG,GIF,etc
|
|
other
|
speaker
|
8euros and 3watts
|
|
|
OSD language
|
Multi language OSD operations in both Chinese and English
|
|
|
input voltage
|
AC Power：100～240v 50/60HZ
|
|
|
power consumption
|
≤130W
|
|
|
usage environment
|
Stable working temperature 0-50 degree s/ relative humidity≤80%/ storage humidity -10～+60℃
|
|
|
VESA
|
400*400mm
|
|
enclosure
|
user manual
|
Electronic or paper manual
|
|
|
qualified card
|
Product Qualification Certificate
|
|
|
warranty card
|
Product Warranty Card
|
|
|
antenna
|
Antenna cord
|
|
|
power cable
|
National standard power cord 1.5meters
|
|
packing
|
Single machine size
|
1249.6*720.4*30mm
|
|
|
Packing size
|
1340*820*140mm
|
|
|
Net weight
|
26.2kg（Mounted panel: 1.5KG, Hanger: 1.4KG）
|
|
|
Gross weight
|
31kg
|
ELECTRONIC LED
DISPLAY SCREEN
LIGHT DISPLAY TECHNOLOGY
VERTICAL
WALL MOUNTED
INVERSION
